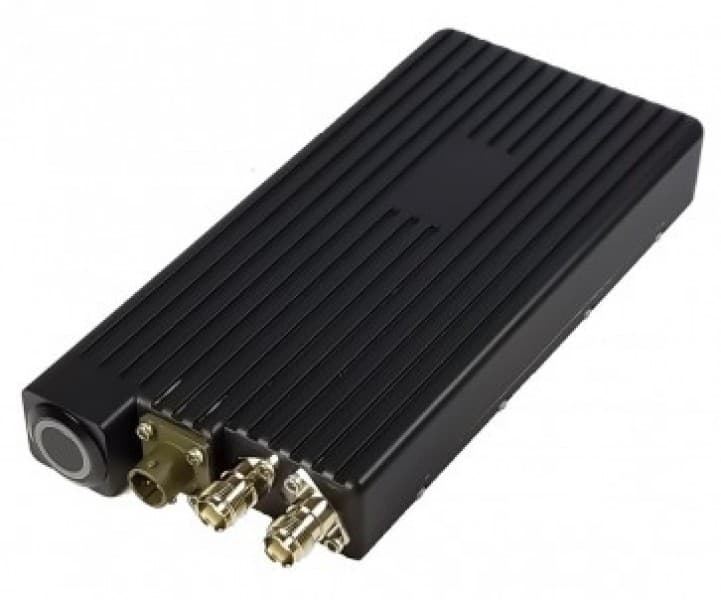

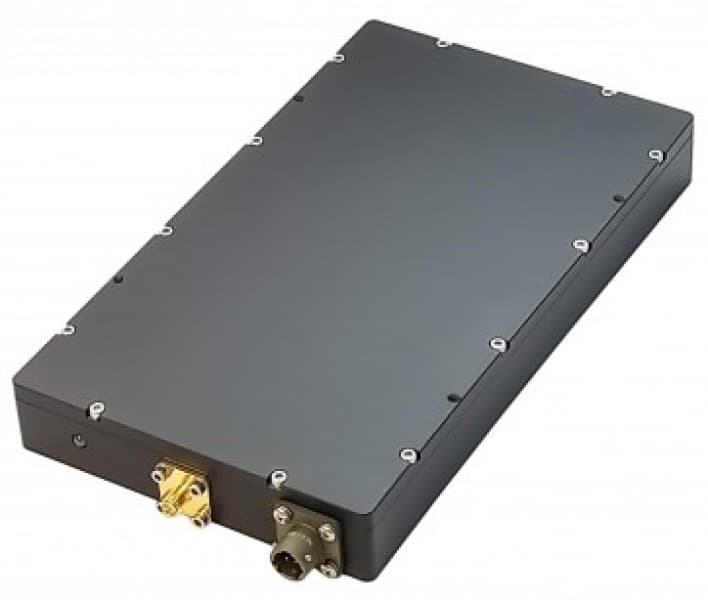

Shireen 1765~2250MHz 20 Watts Bidirectional Amplifier
Brand: ShireenModel: 70-220 In Stock
100% GenuineOriginal, factory-validated
Standard Manufacturer WarrantyEnhanced, business-grade
Years of ExpertiseEstablished, delivery-centric
Condition
1
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Bidirectional RF amplifier with 1765–2250MHz frequency range. Tailored to meet the demands of modern RF communication systems. Offers seamless compatibility with TDD radios and supports advanced modulation schemes like OFDM.
Key Features
Compatible with TDD Radios
Supports rapid Tx/Rx switching for uninterrupted and reliable communication.
Adaptable to OFDM Modulation
Ensures interference-resistant and secure signal transmission.
High Efficiency
Offers maximum power delivery of 20W for extended network coverage.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 1765 - 2250 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Power | P1dB 43.8dBm, 24 Watt |
| Transmit Gain | 12dB +/-2dB (22dB Optional) |
| Transmit Input Power | 0dBm min 30 dBm max |
| Receive Gain | 12dB +/-3dB, (20 dB optional) |
| Noise Figure | <3dB |
| LED Indicators | Red for Receive (Default Mode) Green for Transmit |
| Power Consumption @ 28V DC | 100mA @ Rx, Max 3A @ Tx (depending upon TX duty Cycle) |
| Operating Temp | -40 °C to + 65 °C |
| DC Power | 28 V DC 3A via power over coax with DC injector or 3ft Flying lead with bare end. |
| Dimensions | 8.5”x4.8”x1" (Without Connectors) |
