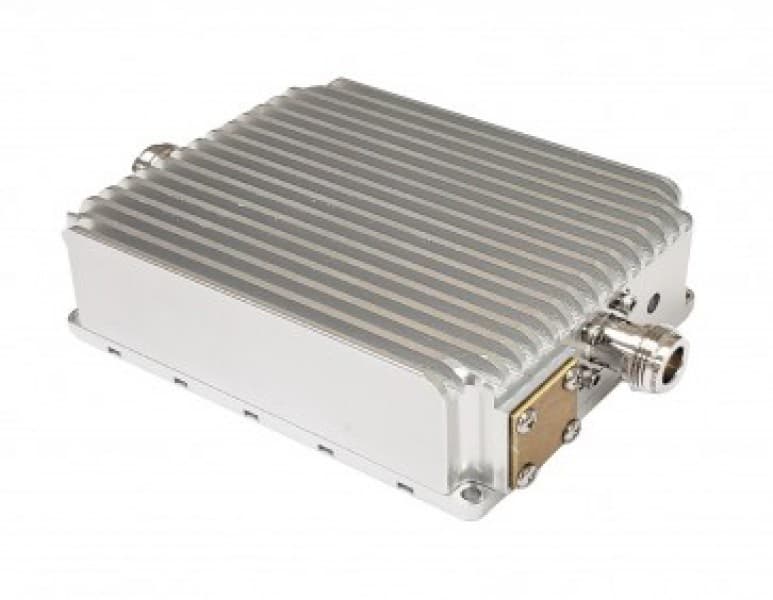

Shireen 2.4~6.0 GHz Bi-directional Amplifier Outdoor Version with powered via DC injector
Brand: ShireenModel: SHR58601-02 In Stock
100% GenuineOriginal, factory-validated
Standard Manufacturer WarrantyEnhanced, business-grade
Years of ExpertiseEstablished, delivery-centric
Condition
1
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
Outdoor bidirectional RF power amplifier comes with a DC injector. Its wideband supports operating military frequencies. Ideal for tough communications networks and tactical applications.
Key Features
Broadband Frequencies
Supports transmission and reception of a broad-band frequency range 2.4 GHz - 6.0 GHz range.
Weatherproof Outdoor Case
Protected by watertight housing for robust protection against harsh environmental conditions.
Power Over Coax
Simplifies installations with power delivered via a DC injector and reduces cable clutter.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 2400 - 6000 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Peak Power | 41dBm +/- 1 |
| Transmit Gain | 16 dB +/- 2 (28dB optional) |
| Transmit Input Power | 3dBm min 20 dBm max |
| Receive Gain | 20~22 dB |
| T/R Switching Speed | < 1 µs |
| Noise Figure | ≤ 5 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption @ 28V DC | 150mA Rx, 2.0A Tx |
| Operating Temp | -40 °C to + 70 °C |
| DC Power | 28 V DC |
| Dimensions | 5.7”x3.3” |
