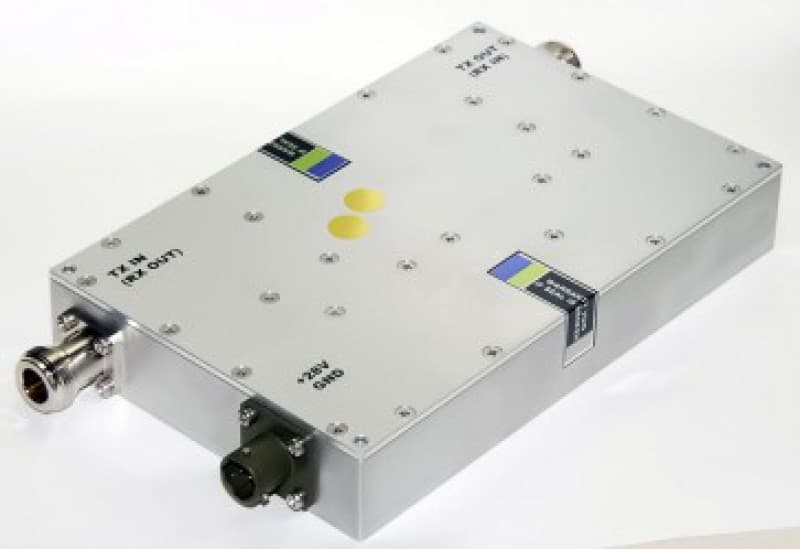

Shireen 4.4~5.0GHz 50watt High Power Bidirectional Amplifier
Brand: ShireenModel: 44001 In Stock
100% GenuineOriginal, factory-validated
Standard Manufacturer WarrantyEnhanced, business-grade
Years of ExpertiseEstablished, delivery-centric
Condition
1
Estimated shipping time across UK: 1-2 business days via DPD , DHL , Parcel Force, & Fedex
Certified Professional Expertise
Product Overview
A cutting-edge RF power amplifier designed for military TDD radios. Scalable and flexible with robust performance for a variety of power output levels Operates in the 4.4 GHz to 5.0 GHz band.
Key Features
Variable Output Power
Provides scalable output from 1 Watt to 50 Watts with the ability to be set by input power.
Advanced Modulation Support
Fully compatible with OFDM modulations and ensures minimal distortion in high-speed communication systems.
Military-Grade Performance
Built specifically for 4.4 GHz military band operations with robust design.
Technical Data
| Parameter | Rating / Detail |
|---|---|
| Operating Range | 4400 - 5000 MHz |
| Operating Mode | TDD, Time Division Duplex |
| Transmit Peak Power | 47dBm, 50 Watt |
| Transmit Gain | 20 dB |
| Transmit Input Power | 0dBm min 27 dBm max |
| Receive Gain | 22 dB |
| Noise Figure | 2.8 dB |
| LED Indicators | Red for Receive (Default Mode), Green for Transmit |
| Power Consumption @ 28V DC | 150mA Rx, 4A Tx |
| Operating Temp | -40 °C to + 65 °C |
| DC Power | 28 V DC |
| Dimensions | 4.0”x6.1” |
